Size Comparison of Main Blade

From top to bottom:

• Align 425D Carbon Fiber Blades (for Trex 500)

• Align 325D Carbon Fiber Blades (for Trex 450)

• Align 205D Carbon Fiber Blades (for Trex 250)


700/90 Class Electric Helis

Avant Aurora 90 Electric

http://www.rcheliresource.com/new-avant-aurora-90-electric-at-2009-ircha-jamboree/

TSA Model Infusion 90 Electric

http://www.rcheliresource.com/new-tsa-model-infusion-90/

Next-D Rave 90

http://www.rcheliresource.com/breaking-next-d-rave-90-photos/

Kyosho Caliber 700 EP

http://www.kyosho.com/eng/products/rc/detail.html?product_id=103149

Compass Odin 700E

http://www.compassmodel.com/odin_700e.php

Henseleit 3D Rigid

http://www.rcheliresource.com/henseleit-3d-rigid-the-story-behind-the-machine/

Henseleit 3D MP-XL-E

http://www.henseleit-helicopters.de/index2.html

Minicopter Joker 3

http://www.minicopter.de/en/Joker3.html#

Minicopter Joker 3DD

http://www.minicopter.de/en/Joker3DD.html#

Acrobat Shark

http://www.eheli-tuning.de/?site=acrshark

3D maneuvers

Here are some links to 3D maneuvers, very good references for practices:)

• 3DX format
• 3DX format (Chinese translation)
• Paul's helicopter pages
• Litterotors.com flying lesson
• Cleveland model helicopter club 3D glossary

My Helicopters

Helicopter 1 - Trex 500 ESP
(Sold - fund for telescope)

Spec

• Align Trex 500 ESP super combo
• Main motor: RCM-BL500L (1600KV)
• ESC: RCE-BL60G 60A (Built-in 5-6V adjustable BEC)
• Motor pinion gear: 13T
• Cyclic servos: Align DS510
• Gyro: Align Align GP750
• Tail servo: Align DS520
• Reciever: Spectrum AR6200

Transmitter Setting

Setup List

• Model type: Heli
• Model name: Trex 500
• Monitor
• Reverse: Thro N Aile R Elev R Rudd N Gyro N Pitc N
• Swash type: CCPM 120 degree

• Thro cut: Inh
• D/R combi: Inh
• Timer: Down timer-8:00; Switch-Trainer
• Range check: Inh
• Power setting: A-EU 328
• Contrast: 50%
• Copy/Reset

Adjust List

• Model select: Trex 500
• D/R: 0: Aile 0 Elev 0 Rudd 0; 1: Aile 0 Elev 0 Rudd 0
• Expo: 0: Aile +25% Elev +25% Rudd 0; 1: Aile 0 Elev 0 Rudd 0
• Travel adj: Thro +/-100 Aile +/-100 Elev +/-100 Rudd +/-100 Gyro +/-100 Pitc +/-100%
• Sub trim: Thro 0 Aile -26 Elev -38 Rudd 0 Gyro 0 Pitc -37
• Gyro: 0: 60% 1: 45%; Sw-Gyro

• Throttle curve 0: 0-25-50-75-100%; 1: 100-95-90-95-100%

• Pitch curve: 40-45-50-75-100%; 0-25-50-75-100%

• Swash mix: Aile +60% Elev -60% Pitch +55%

• Mix 1: Inh

• Mix 2: Inh

• Revo mix: Inh

Helicopter 2 - Trex 450 Pro

Spec

• Align Trex 450 Pro super combo
• Main motor: RCM-BL430SP (3700KV)
• ESC: RCE-BL35X 35A
• Motor pinion gear: 13T
• Cyclic servo: Align DS410M x3
• Tail servo: Align DS520
• Gyro: Align GP750
• Reciever: Spectrum AR6100E

Transmitter Setting

Setup List

• Model type: Heli
• Model name: Trex 450
• Monitor
• Reverse: Thro N Aile R Elev N Rudd R Gyro N Pitc R
• Swash type: CCPM 120 degree

• Thro cut: Inh
• D/R combi: Inh
• Timer: Down timer-8:00; Switch-Trainer
• Range check: Inh
• Power setting: A-EU 328
• Contrast: 50%
• Copy/Reset

Adjust List

• Model select: Trex 450
• D/R: 0: Aile 0 Elev 0 Rudd 0; 1: Aile 0 Elev 0 Rudd 0
• Expo: 0: Aile +30% Elev +30% Rudd 0; 1: Aile 0 Elev 0 Rudd 0
• Travel adj: Thro +/-100 Aile +/-100 Elev +/-100 Rudd +/-100 Gyro +/-100 Pitc +/-100%
• Sub trim: Thro 0 Aile +62 Elev +20 Rudd 0 Gyro 0 Pitc +10
• Gyro: 0: 63.5% 1: 45%; Sw-Gyro
• Throttle curve 0: 0-25-50-75-100%; 1: 100-95-90-95-100%
• Pitch curve: 34.5-38-50-75-100%; 0-25-50-75-100%
• Swash mix: Aile +60% Elev -60% Pitch +60%
• Mix 1: Inh
• Mix 2: Inh
• Revo mix: Inh

Helicopter 3 - Trex 250

Spec

• Align Trex 250 super combo kit
• Main motor: RCM-BL250 (3400KV)
• ESC: RCE-BL15X 15A (Built-in 5-6V adjustable BEC)
• Motor pinion gear: 15T
• Cyclic servo: Align DS410
• Tail servo: Futaba S3154
• Gyro: Align GP750
• Reciever: Spectrum AR6100

Transmitter Setting

Setup List

• Model type: Heli
• Model name: Trex 250
• Monitor
• Reverse: Thro N Aile N Elev N Rudd N Gyro N Pitc R
• Swash type: CCPM 120 degree

• Thro cut: Inh
• D/R combi: Inh
• Timer: Down timer-8:00; Switch-Trainer
• Range check: Inh
• Power setting: A-EU 328
• Contrast: 50%
• Copy/Reset

Adjust List

• Model select: Trex 250
• D/R: 0: Aile 0 Elev 0 Rudd 0; 1: Aile 0 Elev 0 Rudd 0
• Expo: 0: Aile 0 Elev 0 Rudd 0; 1: Aile 0 Elev 0 Rudd 0
• Travel adj: Thro +/-100 Aile +/-100 Elev +/-100 Rudd +/-100 Gyro +/-100 Pitc +/-100%
• Sub trim: Thro 0 Aile +26 Elev +47 Rudd 0 Gyro 0 Pitc +13
• Gyro: 0: 58.5% 1: 45%; Sw-Gyro
• Throttle curve 0: 0-25-50-75-100%; 1: 100-95-90-95-100%
• Pitch curve: 42.5-45.5-50-75-100%; 0-25-50-75-100%
• Swash mix: Aile +80% Elev +80% Pitch -50%
• Mix 1: Inh
• Mix 2: Inh
• Revo mix: Inh

Transmitter - Spectrum DX6i


Charger - Imax B6


Battery

Battery list

• Turnigy 2200mAh 3S1P 25C LiPo x4
• FullyMax 2200mAh 3S1P 25C LiPo x2
• Intellect 850mAh 3S1P 25C LiPo x2
• GE Power 850mAh 3S1P 20C LiPo x2

Simulator - Phoenix Model Flight

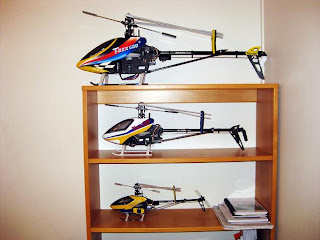

My heli fleet and workspace updated

Got a new shelf, and a Trex 500 ESP. Here are some pics of my heli fleet and workspace:)

Trex 250: DS410, GP750+S3154, AR6100
Trex 450 Pro: DS410M, GP750+DS520, AR6100E
Trex 500 ESP: DS510, GP750+DS520, AR6200

Trex 500 ESP arrived

Here are some pics of my new Trex 500 ESP:)

Spec:

• Align Trex 500 ESP super combo
• Cyclic servos: Align DS510
• Gyro: Align Align GP750
• Tail servo: Align DS520
• Reciever: Spectrum AR6200

My heli bike and flying field

Here are some pictures of my heli bike and flying field in Haga Park:)

My bike with 2 basket carrying helis

Parking in the flying field

Left basket: Trex 450 Pro; Right basket: Trex 250, DX6i, batteries

DX6i and carrying bag on bottom, and case with batteries

Trex 450 Pro and Trex 250, and their carrying cases

Small flying field, my favorite place to fly because it is free of people most of the time, and less people pass by

View from side

Panoramic view

Bigger flying field, I was here once in last autumn when my small flying field occupied

More pictures of my heli workspace

Here are some more shots of my heli workspace:)

New heli workspace with heli fleet

Imax B6 LiPo balance charger and soldering iron

Manuals and books

Tools

Spare parts and tools

Dx6i transmitter, LiPo safe bag, toolbox and aluminium case for Trex 250

Carrying case for Trex 450 Pro

My new workspace and heli fleet

Got a new table yesterday, so I setup a bigger heli workspace:)

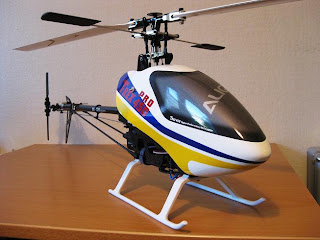

Trex 450 Pro

Here is my Trex 450 Pro after cleaning up the wires and hiding the ESC and reciever inside the frame.

SJM215 CF-Pro

My SJM 215 CF-Pro built complete:) Here are some pictures.

Spec:

• SJM215 CF-Pro Combo B-3S (kit + 3700kv motor + 30A ESC)

• Cyclic servo: Hitec HS-55 x3

• Tail servo: GS-045HB

• Gyro: GUEC GU-210

• Reciever: Spectrum AR6100E
• Battery: Turnigy 1300mAh 3S1P 20C LiPo x2
